Fully Glazed Sectional Door

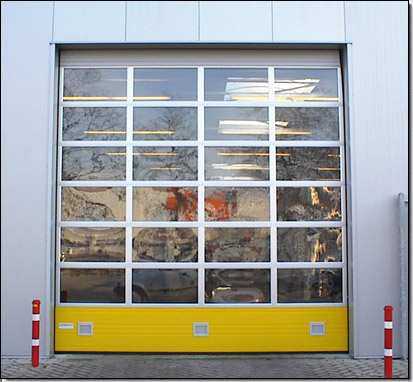

  HGD40 Fully Glazed Sectional Door

 Print This Page









A functional industrial sectional overhead door with maximum incidence of light.

General application areas: We produce over head doors for a market with high demands concerning durability and design. Customer-specific with a broad range of models making sure that your demands are catered for.

Application area: The fully glazed sectional doors are applied in working areas requiring maximum light output apart from sealing, ease of operation and insulation. These aspects have lead to the development of a blank anodised aluminium profile combined with single glazing (4 mm hardened glass / 4 mm acrylate glass) or insulating glass (2 x 2,5 mm sealed acrylate glass).

Accessories: Further we can be of service to you with ventilation screens, pass doors, side doors with fixed panels and fixed panels above and beside the door.

Safety: Complete with cable failure protection, slack cable protection and spring failure protection. The slack cable protection is only required with electrically operated doors. Electrically operated doors have a safety edge security or dead man's operation. With a pass door application, a special circuit makes sure that the industrial door can only be operated when the pass door is fully closed. Hangar Fully Glazed Industrial Doors meet the latest requirements of the labour inspection.

Durability: The glass is clamped in the profiled sealing with aluminium glass frames. This construction keeps the glass removable facilitating damage repairs if necessary. As the vertical profiles have the same size as the horizontal profiles, a solid and optically well balanced division is established. This profile strength also makes the door very stable.

Service and maintenance: You can rely on specially trained mechanics and service mechanics for skilful installation or repair of the door. Also in the case of damage or repair we will be happy to be of prompt service to you. We consider accurate service of paramount importance.

Standard construction of the door: The opening height determines the number of sections. A standard door consists of sections of equal height. This section height varies from 450 to 600mm and also depends on the desired door model. The table below gives the number of windows per section.

Opening width



Number of windows

  -

2655



2

2666

-

3580



3

3581

-

4495



4

4496

-

5410



5

5411

-

6325



6

6326

-

7240



8

7241

-

8000



10

Door width

Opening width



Opening width

<6150 mm



>6150 mm

Side-piece



Side-piece

L1 110   L1 190
Fully Glazed Industrial Door

Fully Glazed Industrial Door



The Hangar Fully Glazed Sectional Door has been designed in consideration of durability and design.

Applicable in all working environments and reliable under all circumstances.
